Due to popular demand, EZEGO took their standard folding bike and made a low step through version, which is especially useful for those with any level of reduced mobility. Easy storage & easy mounting without compromising on the quality of the ride; that was the brief. Riders wanted the same quality components as the Fold but with the extra addition of a low step through for those who need it.

Aside from the obvious different in type of frame, the other main points of difference from the Fold are slightly large frame for increased stability (16" vs 13"), and slightly wider saddle for improved comfort (Velo Plus vs Velo Sports Urban).

As with the standard Fold, there are quick release mechanisms which will have this bike folding down for storage or travel in no time. It also still comes in rather light at 19.5kg, making it very easy to lift into a car boot, motorhome or boat. 45Mn of torque in the EZEGO 250W motor, together with a large 418Wh or 500Wh battery will give you on average around 50km on a single charge.

Shimano Claris 8 speed gearing with a trigger shifter will assist in economising your battery usage, as well as your own energy, keeping you riding for longer periods. Our high quality Promax disc brakes enable reduced stopping distances, which will leave you fully in control of this e-bike at all times.

All components on the Fold LS have been carefully designed & selected for optimal performance & low weight.







How is the frame size measured?

Most E-bikes are measured from the centre of the crank to the base of the seat post tube. However, some E-bike manufacturers may measure their bikes differently depending on their style.

What is the right frame size for me?

This helpful guide will help you to find which size electric bike is best suited to you. If you would like a bit more information, don't hesitate to get in touch.





HYBRID ELECTRIC BIKES

MENS

Rider Height Recommended Hybrid Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size (cm) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 15" 33 - 39 X-Small
5'2"" - 5'6"" 158cm - 168cm 15"-16" 38 - 44 Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" 43 - 47 Medium
5'10" - 6'1" 178cm - 185cm 19" - 20" 48 - 52 Large
6'1" - 6'4" 185cm - 193cm 21" - 22" 53 - 57 X-Large
6'4" - 6'6" 193cm - 198cm 23" - 24" 58 - 61 XX-Large



WOMENS

Rider Height Recommended Women's Hybrid Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" X-Small
5'2"" - 5'6"" 158cm - 168cm 15" - 16" Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" Medium
5'10" - 6'1" 178cm - 185cm 19"+ Large



VIEW ALL HYBRID E-BIKES

ELECTRIC MOUNTAIN BIKES

MENS

Rider Height Recommended Mountain Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size (cm) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" 33 - 37 X-Small
5'2"" - 5'6"" 158cm - 168cm 15" - 16" 38 - 42 Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" 43 - 47 Medium
5'10" - 6'1" 178cm - 185cm 19" - 20" 48 - 52 Large
6'1" - 6'4" 185cm - 193cm 21" - 22" 53 - 57 X-Large
6'4" - 6'6" 193cm - 198cm 23" - 24" 58 - 61 XX-Large



WOMENS

Rider Height Recommended Women's Mountain Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" X-Small
5'2" - 5'6" 158cm - 168cm 15" - 16" Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" Medium
5'10" - 6'1" 178cm - 185cm 19"+ Large



VIEW ALL EMTB's

COMMUTER ELECTRIC BIKES

MENS

Rider Height Suggested Commuter Bike Size
Feet & Inches Centimetres Frame Size (cm) Frame Size
4'10" - 5'0" 148cm - 152cm 47cm - 48cm XX-Small
5'0" - 5'3" 152cm - 160cm 49cm - 50cm X-Small
5'3" - 5'6" 160cm - 168cm 51cm - 53cm Small
5'6" - 5'9" 168cm - 175cm 54cm - 55cm Medium
5'9" - 6'0" 175cm - 183cm 56cm - 58cm Large
6'0" - 6'3" 183cm - 191cm 58cm - 60cm X-Large
6'3" - 6'6" 191cm - 198cm 61cm - 63cm XX-Large



WOMENS

Rider Height Suggested Women's Commuter Frame Size
Feet & Inches Centimetres Frame Size (cm) Frame Size
4'10" - 5'1" 147cm - 155cm 44cm - 46cm XX-Small
5'1" - 5'3" 155cm - 160cm 47cm - 49cm X-Small
5'3" - 5'5" 160cm - 165cm 50cm - 52cm Small
5'5" - 5'8" 165cm - 172cm 53cm - 55cm Medium
5'8" - 5'10" 172cm - 180cm 56cm - 57cm Large



VIEW ALL COMMUTER ELECTRIC BIKES

Large Range

Receive up to 50km of assistance on a single charge!

Rear Mounted Battery

The Fold LS has a sleek frame design with rear-mounted battery.

LED Display

Power assistance and battery level can be monitored using the handlebar mounted LED Display.

20" Tyres

This bike comes equipped with reliable E-bike specific Kenda Kwick Journey 20" puncture protect tyres.

Shimano Altus 8 Speed Gears

Experience smooth gear changes with the Shimano Altus 8 speed gear mechanism with Rapid Fire shifter.

Mudguards

Your EZEGO bike will come equipped with alloy mudguards.

specifications

Battery and Range
400Wh 500Wh 36v battery with Samsung cells (50km) ** Range according to battery capacity. It is also dependent on the different riding conditions - terrain, rider weight, tyre pressure, headwind etc.
Motor
250W front hub brushless gear drive (45nm)
Display
EZEGO 5 mode LED Display with walk assist
Frame
16" lightweight alloy with folding internal cables
Gears
Shimano Altus 8 Speed with Rapid Fire Shifter
Chain/Chainset
Alloy 44 tooth 170mm with CNC finish KMC X8 anti-rust
BB
Sealed Cartridge
Brakes
Promax Mechanical Disc Brakes 140mm rotors front and 160mm rear with safety power cut-off switch.
Tyres and Tubes
Kenda Kwick Journey 20" x 1.75" with reflective line and high pressure Presta valve tubes.
Rims and Spokes
Alloy double wall 36 hole, stainless spokes with brass nipples (14G front, 13G rear)
Components
Saddle (Velo plush comfort) Grips (Velo locking palmwing double density) Mudguards, Kickstand, Rear Carrier.
Max Speed
25kph / 15.5mph
Weight
Total: 19.5kg Ebike: 16kg Battery: 3.5kg
Max Rider Weight
120KG
Warranty
12 Months
Delivery
FREE 2-3 WORKING DAY DELIVERY.
Returns
Cancelling your order: If you would like to cancel your order, please contact us immediately at info@ecobikecompany.com or on 0333 050 3189. Please include your order number when contacting us. If your order has not yet left the manufacturer's warehouse, we should be able to stop it shipping, and issue you a refund immediately. Please note –  when returning a product, it must be returned in ‘as new’ condition, with all components included, in their original packaging. There will be a charge for the return. Returns - Changed your mind If you change your mind after buying from us and want a refund, you have up to 14 days to let us know and have the goods returned to us. You will need to return the product to us before we can provide a refund. Eco Bike Co. can help arrange the return for a charge of £50 - a courier will be sent to pick it up from you & return it to the manufacturer.   Please note –  the 14 days return period is to allow you to examine the goods as you would in a shop. To obtain a full refund, the goods must be returned in an “as new” condition with all components included in their original packaging. “As new” condition is defined as unridden. Returns - Damages & Faulty We ask that you thoroughly inspect all items at the point of delivery. We advise you not to accept delivery of any damaged items. If you discover that an item has been damaged, please send clear photos of the damaged items to info@ecobikecompany.com so that we can open an insurance claim on your behalf. If your bike develops a fault through normal use (as outlined in the manufacturer's manual) you could be entitled to a repair or replacement as covered with the warranty. Please send through details of the fault to info@ecobikecompany.com and we will arrange the repair or replacement with the manufacturer. Please note –  any fault caused due to misuse of the bike is not covered by this policy. Please ensure you read the manufacturer's manual in detail before using your electric bike to avoid voiding your warranty.

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
C
Christopher Boud
EZEGO Fold ls

Our fellow campers in France let us try their Fold and ls which made the decision to buy much easier.
We were struggling with our old manual bikes whuch were becoming a burden on the steep hills.

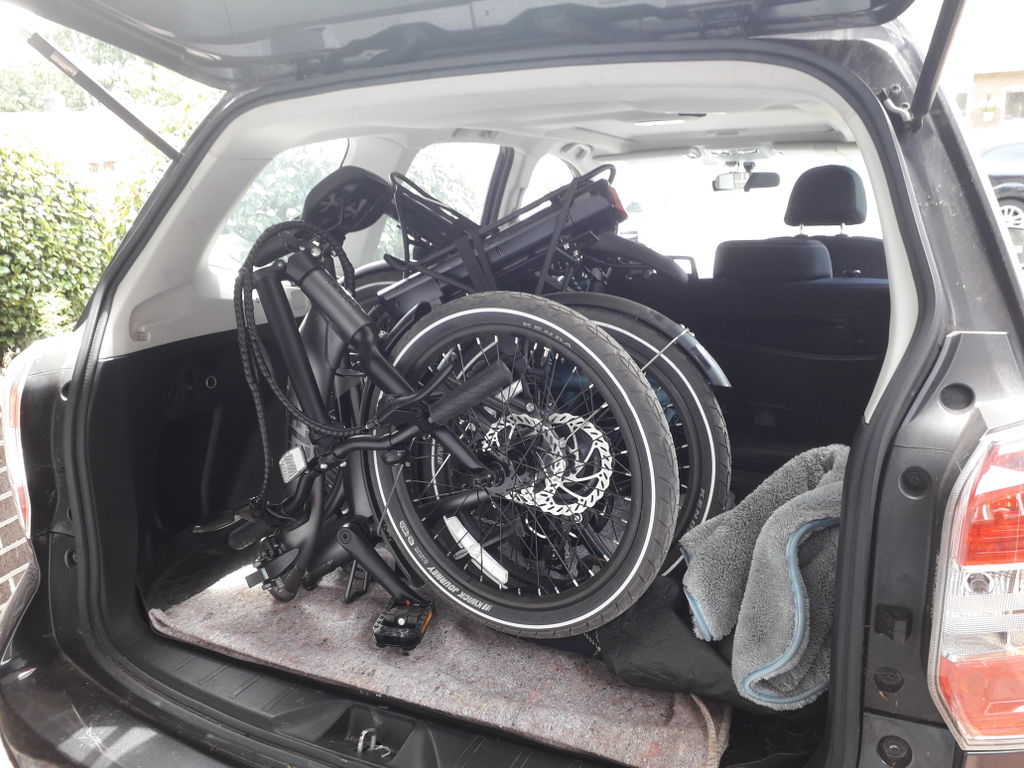

The staff at eco bike co. are friendly and efficient. The bikes arrived the next day and simple to complete the assembly. The two Folds fit snugly in the back of the car without having to put the rear seats down. It's now an absolute pleasure to enjoy a cycle ride and has given my partner renewed enthusiasm with the ease, comfort and peace of mind the ls brings.
