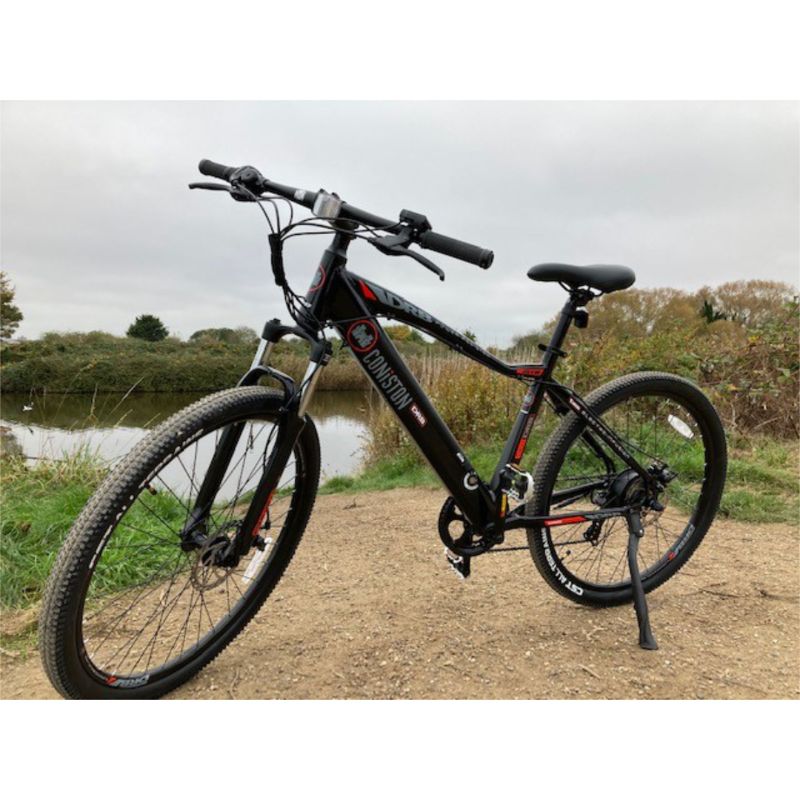

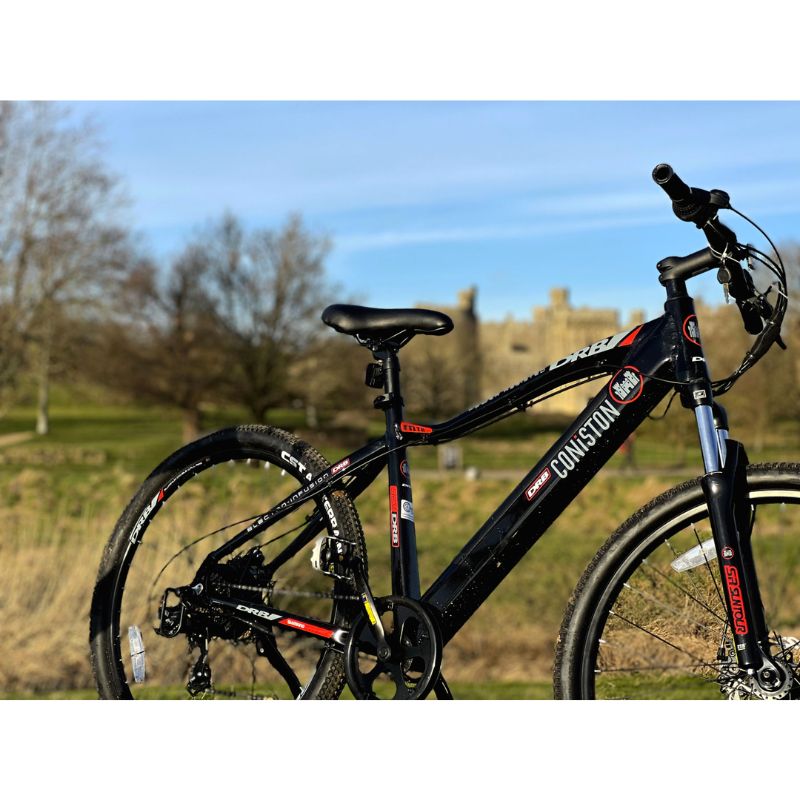

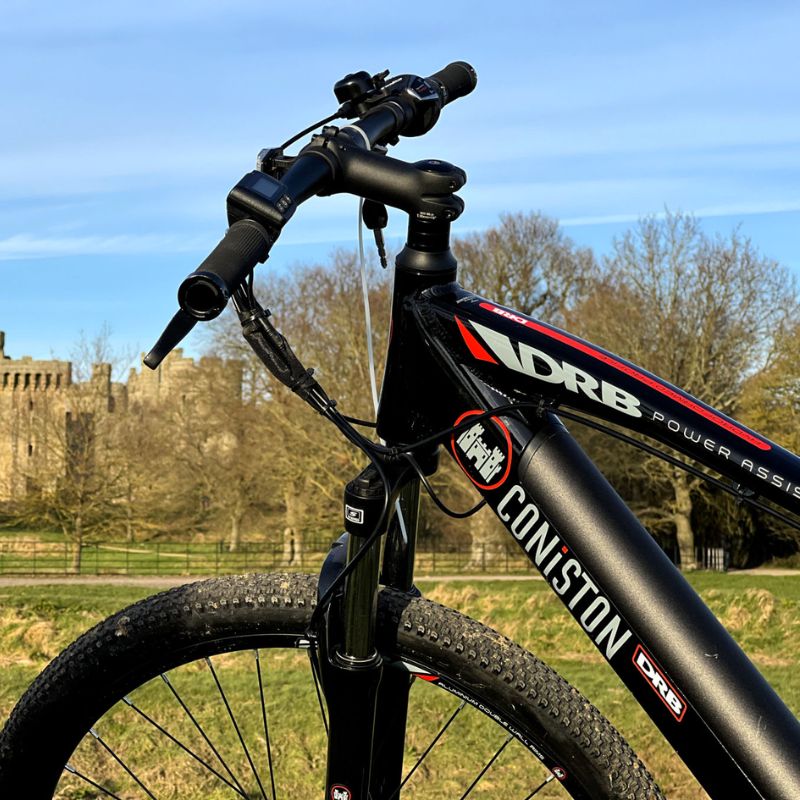

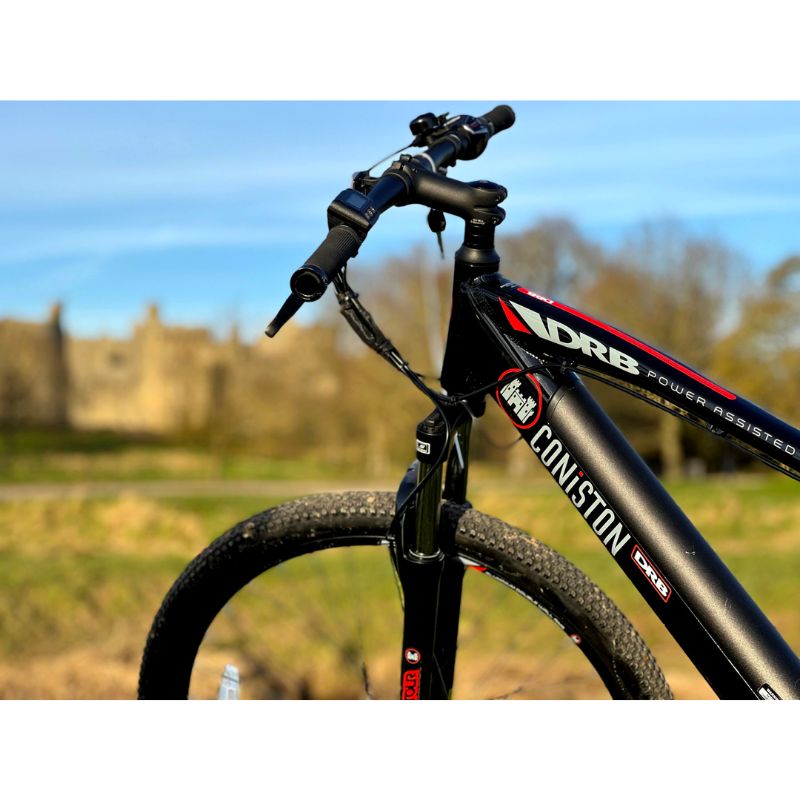

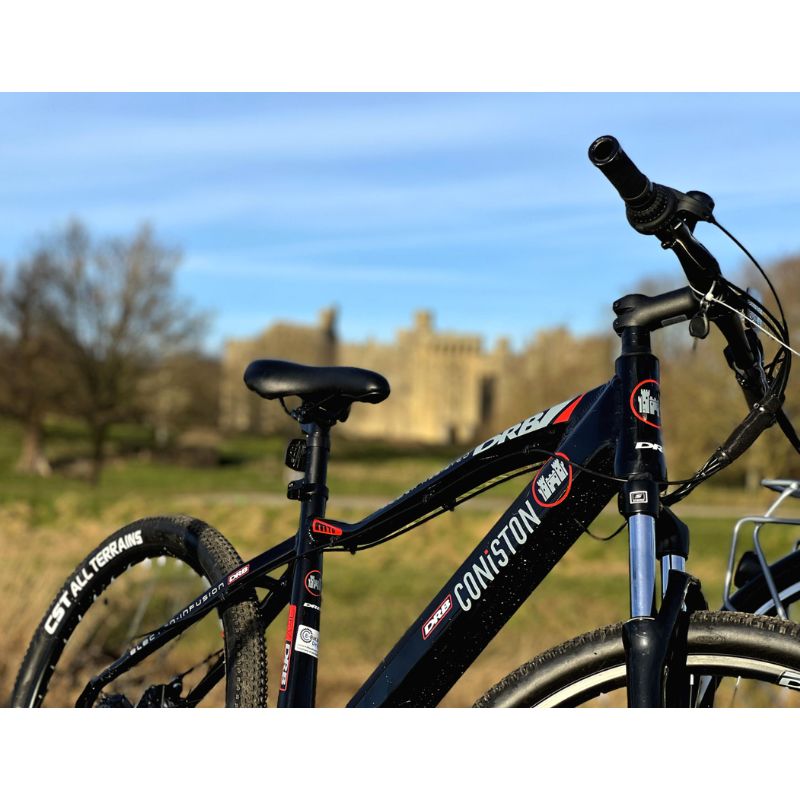

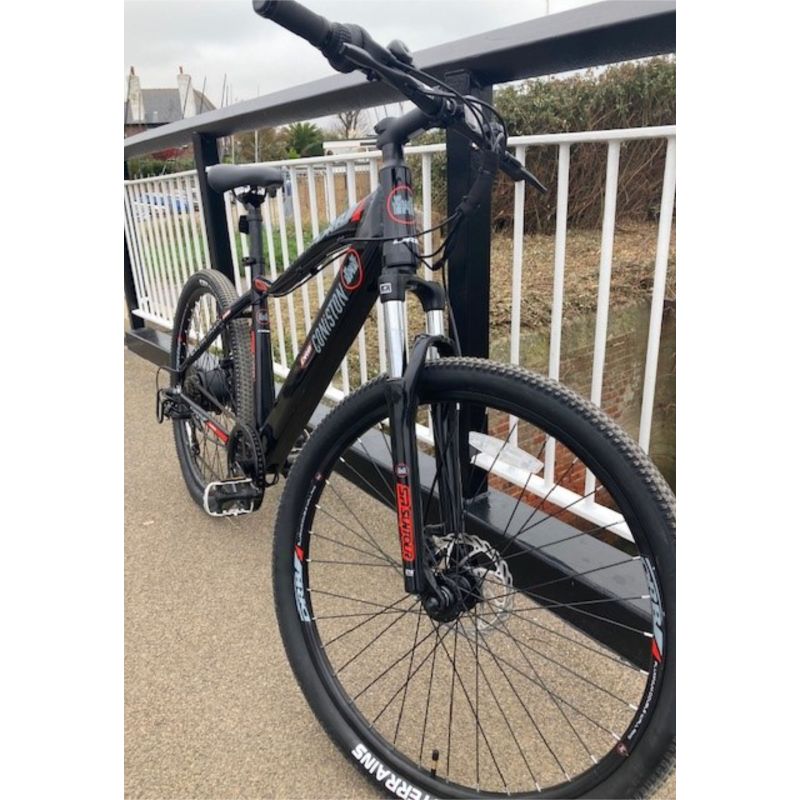

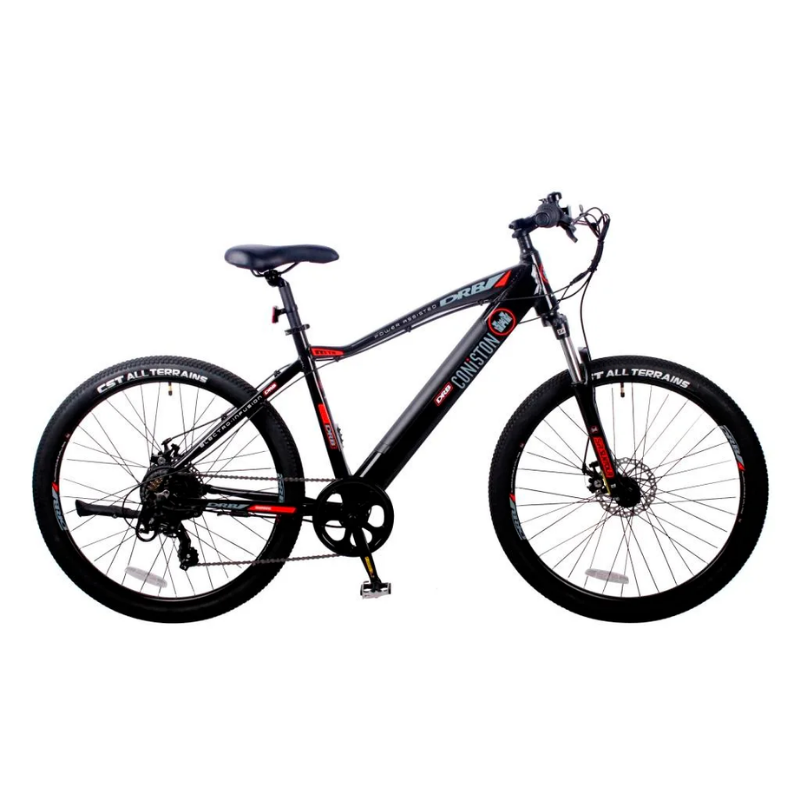

Dallingridge Coniston Hardtrail Electric Mountain Bike

£1,349.00
Product Add-Ons
Have any questions?

One of four bicycles to debut the Dallingridge Electric Range. The Coniston is the no-nonsense hardtail electric mountain bike, maintaining the innovative battery frame integration & sleek build quality seen in the rest of the range.

The Coniston is the perfect choice for those who want a reliable, well equipped all-rounder… for those who want to comfortably and confidently vear off the beaten track, but perhaps need a little kick or fancy an added boost of adrenaline. Based around an Alloy crossbar frame, designed with a slightly lower top-tube to broaden rider suitability and also keep that weight towards the rear, aiding agility.

Delivery of the electric power assistance comes from the 250w 36v rear hub motor which is juiced by a frame down-tube intergrated 14Ah battery, capable of up for 50 miles from a single charge! Use the handlebar mounted LCD display to flick between various modes of power assistance and tailor your ride depending on surrounding and conditions.

Up front you’ll find MTB handlebars and Suntour suspension forks with 80mm travel, which, in unison with the CST All Terrains tyres aspires confidence in capability and bike control. Supported by responsive mechanical Disc brakes front & rear. The Coniston combines the best possible technologies and components available at this price point. The perfect foot in the door to the world of eMTB.



How is the frame size measured?

Most E-bikes are measured from the centre of the crank to the base of the seat post tube. However, some E-bike manufacturers may measure their bikes differently depending on their style.

What is the right frame size for me?

This helpful guide will help you to find which size electric bike is best suited to you. If you would like a bit more information, don't hesitate to get in touch.





HYBRID ELECTRIC BIKES

MENS

Rider Height Recommended Hybrid Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size (cm) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 15" 33 - 39 X-Small
5'2"" - 5'6"" 158cm - 168cm 15"-16" 38 - 44 Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" 43 - 47 Medium
5'10" - 6'1" 178cm - 185cm 19" - 20" 48 - 52 Large
6'1" - 6'4" 185cm - 193cm 21" - 22" 53 - 57 X-Large
6'4" - 6'6" 193cm - 198cm 23" - 24" 58 - 61 XX-Large



WOMENS

Rider Height Recommended Women's Hybrid Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" X-Small
5'2"" - 5'6"" 158cm - 168cm 15" - 16" Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" Medium
5'10" - 6'1" 178cm - 185cm 19"+ Large



VIEW ALL HYBRID E-BIKES

ELECTRIC MOUNTAIN BIKES

MENS

Rider Height Recommended Mountain Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size (cm) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" 33 - 37 X-Small
5'2"" - 5'6"" 158cm - 168cm 15" - 16" 38 - 42 Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" 43 - 47 Medium
5'10" - 6'1" 178cm - 185cm 19" - 20" 48 - 52 Large
6'1" - 6'4" 185cm - 193cm 21" - 22" 53 - 57 X-Large
6'4" - 6'6" 193cm - 198cm 23" - 24" 58 - 61 XX-Large



WOMENS

Rider Height Recommended Women's Mountain Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" X-Small
5'2" - 5'6" 158cm - 168cm 15" - 16" Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" Medium
5'10" - 6'1" 178cm - 185cm 19"+ Large



VIEW ALL EMTB's

COMMUTER ELECTRIC BIKES

MENS

Rider Height Suggested Commuter Bike Size
Feet & Inches Centimetres Frame Size (cm) Frame Size
4'10" - 5'0" 148cm - 152cm 47cm - 48cm XX-Small
5'0" - 5'3" 152cm - 160cm 49cm - 50cm X-Small
5'3" - 5'6" 160cm - 168cm 51cm - 53cm Small
5'6" - 5'9" 168cm - 175cm 54cm - 55cm Medium
5'9" - 6'0" 175cm - 183cm 56cm - 58cm Large
6'0" - 6'3" 183cm - 191cm 58cm - 60cm X-Large
6'3" - 6'6" 191cm - 198cm 61cm - 63cm XX-Large



WOMENS

Rider Height Suggested Women's Commuter Frame Size
Feet & Inches Centimetres Frame Size (cm) Frame Size
4'10" - 5'1" 147cm - 155cm 44cm - 46cm XX-Small
5'1" - 5'3" 155cm - 160cm 47cm - 49cm X-Small
5'3" - 5'5" 160cm - 165cm 50cm - 52cm Small
5'5" - 5'8" 165cm - 172cm 53cm - 55cm Medium
5'8" - 5'10" 172cm - 180cm 56cm - 57cm Large



VIEW ALL COMMUTER ELECTRIC BIKES

Powerful Motor

Surging power with a rotation of the cranks. No matter what pressure or pedal power applied, as long as the cranks are turning, you’ll get a boost of assistance!

Suntour Suspension

The Suntour suspension fork allows for a smooth ride.

Disc Brakes

160mm mechanical disc brakes to provide responsive stopping power, great for unpredictable conditions.

specifications

Battery and Range
14Ah 36V - more than 45+ miles ** Range according to battery capacity. It is also dependent on the different riding conditions - terrain, rider weight, tyre pressure, headwind etc.
Motor
250W
Frame Size
27.5” Alloy Crossbar
Tyres
CST All Terrains, 27.5″ x 2.10″
Fork
Suntour Suspension Fork (80mm)
Weight
24kg
Display
LCD
Gears
7-speed Shimano
Rear Derailleur
Shimano TY-300D
Brakeset
JAK MEchanical Disc, 160mm
Extras
Chainguard, Kickstand
Warranty
Delivery
3-5 working days
Returns
Cancelling your order: If you would like to cancel your order, please contact us immediately at info@ecobikecompany.com or on 0333 050 3189. Please include your order number when contacting us. If your order has not yet left the manufacturer's warehouse, we should be able to stop it shipping, and issue you a refund immediately. Please note –  when returning a product, it must be returned in ‘as new’ condition, with all components included, in their original packaging. There will be a charge for the return. Returns - Changed your mind If you change your mind after buying from us and want a refund, you have up to 14 days to let us know and have the goods returned to us. You will need to return the product to us before we can provide a refund. Eco Bike Co. can help arrange the return for a charge of £50 - a courier will be sent to pick it up from you & return it to the manufacturer.   Please note –  the 14 days return period is to allow you to examine the goods as you would in a shop. To obtain a full refund, the goods must be returned in an “as new” condition with all components included in their original packaging. “As new” condition is defined as unridden. Returns - Damages & Faulty We ask that you thoroughly inspect all items at the point of delivery. We advise you not to accept delivery of any damaged items. If you discover that an item has been damaged, please send clear photos of the damaged items to info@ecobikecompany.com so that we can open an insurance claim on your behalf. If your bike develops a fault through normal use (as outlined in the manufacturer's manual) you could be entitled to a repair or replacement as covered with the warranty. Please send through details of the fault to info@ecobikecompany.com and we will arrange the repair or replacement with the manufacturer. Please note –  any fault caused due to misuse of the bike is not covered by this policy. Please ensure you read the manufacturer's manual in detail before using your electric bike to avoid voiding your warranty.
