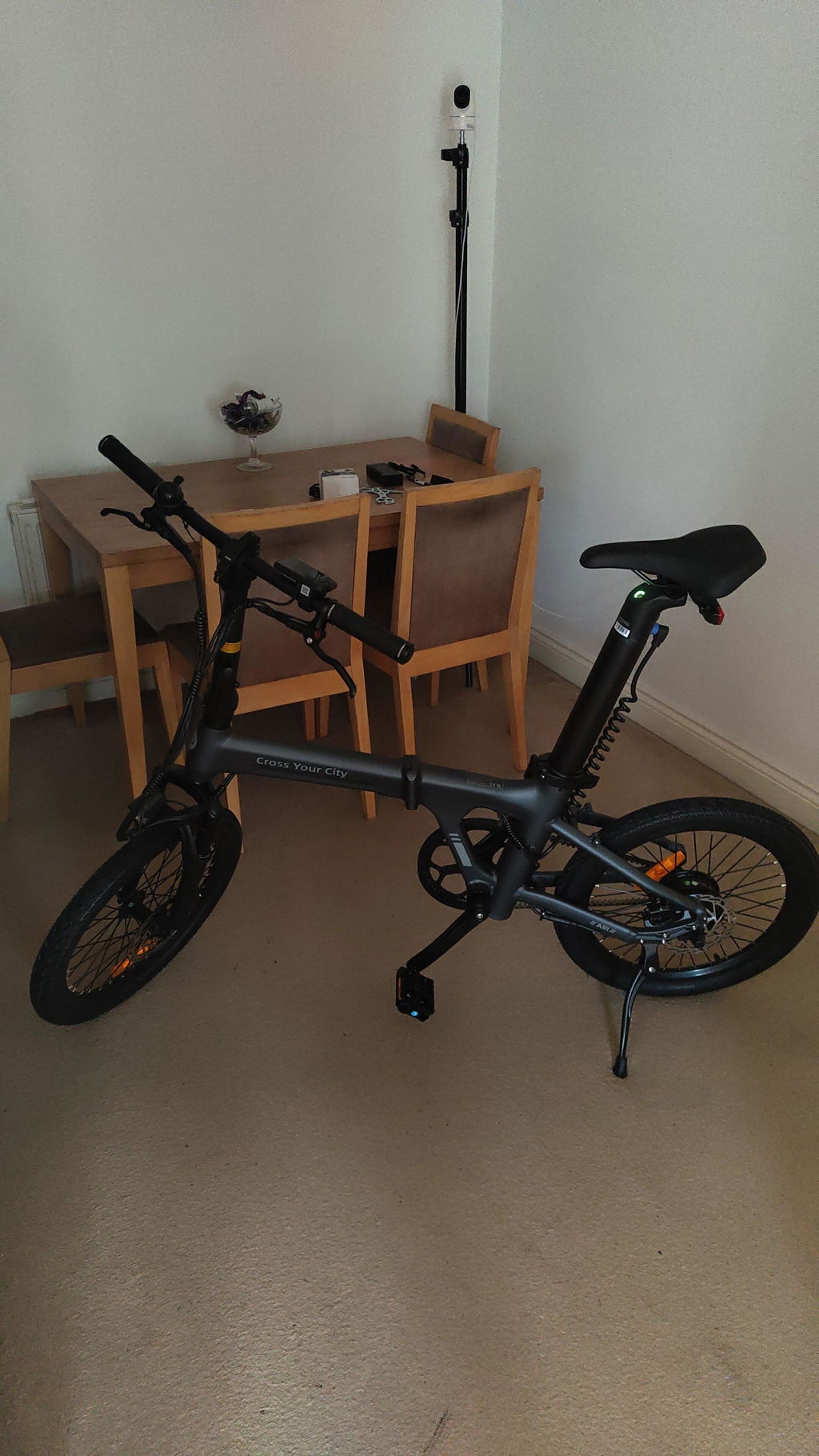

ADO Air 20S Folding Electric Bike

£1,399.00
Free Mainland UK Shipping

Est. Delivery:

Warranty: 1 Years

Product Add-Ons
Have any questions?

The ADO Air 20S Folding Electric Bike combines practicality, efficiency, and advanced technology, making it an excellent choice for urban commuting and leisure rides. With a maximum range of 100 km and a top speed of 25 km/h, it offers exceptional performance for long-distance travel. The bike's net weight is just 18 kg, and it is certified by SGS CE, ensuring high-quality standards and reliability.

Equipped with a front fork suspension, the ADO Air 20S provides a smooth and comfortable ride on various terrains. The 20*1.95 inch tyres offer stability and durability. The bike features a torque sensor for precise pedal assist, with 0-3 levels of intelligent assistance. It accommodates rider heights from 150cm to 200cm and supports a maximum weight capacity of 120kg.

Designed to operate efficiently in temperatures ranging from -10 to 50°C, the ADO Air 20S is powered by a Samsung 36V/9.6 Ah battery. The CE version has a 250W motor, while the international version comes with a 350W motor. Charging takes 4-6 hours, ensuring minimal downtime. The bike also features an IPS colour display for clear and intuitive monitoring of ride metrics. The torque varies with versions, offering 37N.m for the CE version and 42N.m for the international version.

The lightweight aluminium frame, hydraulic disc brakes, and double-walled aluminium wheels provide durability and safety. It includes a standard fork, an IPX5 waterproof 1200-lumen headlight, and a reflector tail light for enhanced visibility. The carbon belt drive and folding pedals add to the bike's convenience and low maintenance. The ADO Air 20S Folding Electric Bike is designed to withstand various weather conditions, making it a versatile and reliable choice for modern commuters.



How is the frame size measured?

Most E-bikes are measured from the centre of the crank to the base of the seat post tube. However, some E-bike manufacturers may measure their bikes differently depending on their style.

What is the right frame size for me?

This helpful guide will help you to find which size electric bike is best suited to you. If you would like a bit more information, don't hesitate to get in touch.





HYBRID ELECTRIC BIKES

MENS

Rider Height Recommended Hybrid Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size (cm) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 15" 33 - 39 X-Small
5'2"" - 5'6"" 158cm - 168cm 15"-16" 38 - 44 Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" 43 - 47 Medium
5'10" - 6'1" 178cm - 185cm 19" - 20" 48 - 52 Large
6'1" - 6'4" 185cm - 193cm 21" - 22" 53 - 57 X-Large
6'4" - 6'6" 193cm - 198cm 23" - 24" 58 - 61 XX-Large



WOMENS

Rider Height Recommended Women's Hybrid Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" X-Small
5'2"" - 5'6"" 158cm - 168cm 15" - 16" Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" Medium
5'10" - 6'1" 178cm - 185cm 19"+ Large



VIEW ALL HYBRID E-BIKES

ELECTRIC MOUNTAIN BIKES

MENS

Rider Height Recommended Mountain Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size (cm) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" 33 - 37 X-Small
5'2"" - 5'6"" 158cm - 168cm 15" - 16" 38 - 42 Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" 43 - 47 Medium
5'10" - 6'1" 178cm - 185cm 19" - 20" 48 - 52 Large
6'1" - 6'4" 185cm - 193cm 21" - 22" 53 - 57 X-Large
6'4" - 6'6" 193cm - 198cm 23" - 24" 58 - 61 XX-Large



WOMENS

Rider Height Recommended Women's Mountain Frame Size
Feet & Inches Centimetres Frame Size (inches) Frame Size
4'10" - 5'2" 148cm - 158cm 13" - 14" X-Small
5'2" - 5'6" 158cm - 168cm 15" - 16" Small
5'6" - 5' 10" 168cm - 178cm 17" - 18" Medium
5'10" - 6'1" 178cm - 185cm 19"+ Large



VIEW ALL EMTB's

COMMUTER ELECTRIC BIKES

MENS

Rider Height Suggested Commuter Bike Size
Feet & Inches Centimetres Frame Size (cm) Frame Size
4'10" - 5'0" 148cm - 152cm 47cm - 48cm XX-Small
5'0" - 5'3" 152cm - 160cm 49cm - 50cm X-Small
5'3" - 5'6" 160cm - 168cm 51cm - 53cm Small
5'6" - 5'9" 168cm - 175cm 54cm - 55cm Medium
5'9" - 6'0" 175cm - 183cm 56cm - 58cm Large
6'0" - 6'3" 183cm - 191cm 58cm - 60cm X-Large
6'3" - 6'6" 191cm - 198cm 61cm - 63cm XX-Large



WOMENS

Rider Height Suggested Women's Commuter Frame Size
Feet & Inches Centimetres Frame Size (cm) Frame Size
4'10" - 5'1" 147cm - 155cm 44cm - 46cm XX-Small
5'1" - 5'3" 155cm - 160cm 47cm - 49cm X-Small
5'3" - 5'5" 160cm - 165cm 50cm - 52cm Small
5'5" - 5'8" 165cm - 172cm 53cm - 55cm Medium
5'8" - 5'10" 172cm - 180cm 56cm - 57cm Large



VIEW ALL COMMUTER ELECTRIC BIKES

Care Free Carbon Belt

Revolutionise your ride with the maintenance-free carbon belt that can last up to 30,000 km. Enjoy a quiet, smooth, and oil-free riding experience without the hassle of rusty chains.

Battery Lock

Ensure the security of your battery with our innovative battery lock system, designed to keep it securely in place during your rides. With this unique lock design, you can have peace of mind knowing that your battery is protected against theft or tampering.

Hydraulic Brakes

Experience unmatched stopping power with hydraulic disc brakes, ensuring your safety in all weather conditions. Combined with a comfortable Dutch-style frame, every ride is a pleasure.

Torque Sensor

This motor delivers a torque of 37N.m to 42N.m, enabling a maximum speed of 25KM/h to 30KM/h, depending on the model, and a climbing angle of up to 20 degrees.

Colour Display

The IPX7 waterproof IPS colour display ensures clear visibility even in bright sunlight, keeping you informed about your ride at all times.

Smart App

Stay connected with the ADO Smart APP, offering navigation, customer support, and advanced control features through ADO LAB.

specifications

Battery and Range
36V/9.6aH, Up to 100km Range
** Range according to battery capacity. It is also dependent on the different riding conditions - terrain, rider weight, tyre pressure, headwind etc.
Motor
Brushless DC motor 250W, 37N.m
Pedal Assist
0-3 level pedal assist
Tyres
20*1.95 Inch
Weight
18 kg
Display
IPS colourful display
Suspension
Front fork suspension
Waterproof
IPX5
Lights
Headlight: IPX5 Waterproof 1200lumen Tail Light: Relector Tail Light
Brakes
Hydraulic disc brake
Seat
Standard
Chain Ring
Carbon Belt
Wheels
Double Walled Aluminium
Max Rider Weight
120kg
Warranty
1 Year
Delivery
FREE 3-7 WORKING DAY DELIVERY.
Returns
Cancelling your order:
If you would like to cancel your order, please contact us immediately at info@ecobikecompany.com or on 0333 050 3189. Please include your order number when contacting us.
If your order has not yet left the manufacturer's warehouse, we should be able to stop it shipping, and issue you a refund immediately.
Please note –  when returning a product, it must be returned in ‘as new’ condition, with all components included, in their original packaging. There will be a charge for the return.

Returns - Changed your mind
If you change your mind after buying from us and want a refund, you have up to 14 days to let us know and have the goods returned to us. You will need to return the product to us before we can provide a refund. Eco Bike Co. can help arrange the return for a charge of £50 - a courier will be sent to pick it up from you & return it to the manufacturer.  

Please note –  the 14 days return period is to allow you to examine the goods as you would in a shop. To obtain a full refund, the goods must be returned in an “as new” condition with all components included in their original packaging. “As new” condition is defined as unridden.

Returns - Damages & Faulty
We ask that you thoroughly inspect all items at the point of delivery. We advise you not to accept delivery of any damaged items. If you discover that an item has been damaged, please send clear photos of the damaged items to info@ecobikecompany.com so that we can open an insurance claim on your behalf.

If your bike develops a fault through normal use (as outlined in the manufacturer's manual) you could be entitled to a repair or replacement as covered with the warranty. Please send through details of the fault to info@ecobikecompany.com and we will arrange the repair or replacement with the manufacturer.

Please note –  any fault caused due to misuse of the bike is not covered by this policy. Please ensure you read the manufacturer's manual in detail before using your electric bike to avoid voiding your warranty.
