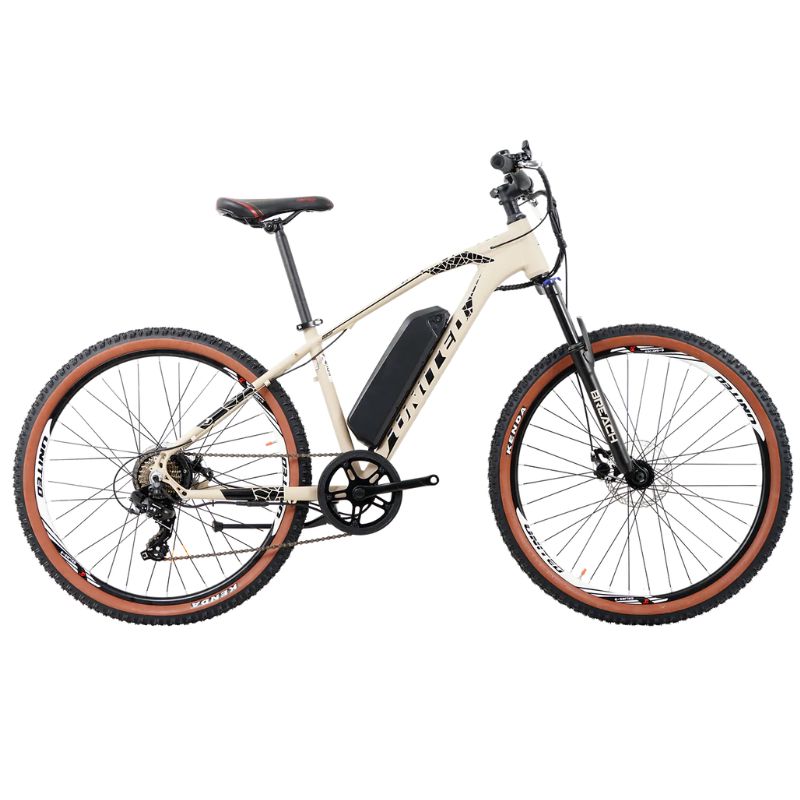

Berlin is programmed for on-road and light off-road trail use. With its slick frame design and top-notch components, you can shred just about anything.
Enjoy your day on the trails, don’t hesitate.
How is the frame size measured?
Most E-bikes are measured from the centre of the crank to the base of the seat post tube. However, some E-bike manufacturers may measure their bikes differently depending on their style.
What is the right frame size for me?
This helpful guide will help you to find which size electric bike is best suited to you. If you would like a bit more information, don't hesitate to get in touch.
HYBRID ELECTRIC BIKES
MENS
| Rider Height | Recommended Hybrid Frame Size | |||
|---|---|---|---|---|
| Feet & Inches | Centimetres | Frame Size (inches) | Frame Size (cm) | Frame Size |
| 4'10" - 5'2" | 148cm - 158cm | 13" - 15" | 33 - 39 | X-Small |
| 5'2"" - 5'6"" | 158cm - 168cm | 15"-16" | 38 - 44 | Small |
| 5'6" - 5' 10" | 168cm - 178cm | 17" - 18" | 43 - 47 | Medium |
| 5'10" - 6'1" | 178cm - 185cm | 19" - 20" | 48 - 52 | Large |
| 6'1" - 6'4" | 185cm - 193cm | 21" - 22" | 53 - 57 | X-Large |
| 6'4" - 6'6" | 193cm - 198cm | 23" - 24" | 58 - 61 | XX-Large |
WOMENS
| Rider Height | Recommended Women's Hybrid Frame Size | ||
|---|---|---|---|
| Feet & Inches | Centimetres | Frame Size (inches) | Frame Size |
| 4'10" - 5'2" | 148cm - 158cm | 13" - 14" | X-Small |
| 5'2"" - 5'6"" | 158cm - 168cm | 15" - 16" | Small |
| 5'6" - 5' 10" | 168cm - 178cm | 17" - 18" | Medium |
| 5'10" - 6'1" | 178cm - 185cm | 19"+ | Large |
ELECTRIC MOUNTAIN BIKES
MENS
| Rider Height | Recommended Mountain Frame Size | |||
|---|---|---|---|---|
| Feet & Inches | Centimetres | Frame Size (inches) | Frame Size (cm) | Frame Size |
| 4'10" - 5'2" | 148cm - 158cm | 13" - 14" | 33 - 37 | X-Small |
| 5'2"" - 5'6"" | 158cm - 168cm | 15" - 16" | 38 - 42 | Small |
| 5'6" - 5' 10" | 168cm - 178cm | 17" - 18" | 43 - 47 | Medium |
| 5'10" - 6'1" | 178cm - 185cm | 19" - 20" | 48 - 52 | Large |
| 6'1" - 6'4" | 185cm - 193cm | 21" - 22" | 53 - 57 | X-Large |
| 6'4" - 6'6" | 193cm - 198cm | 23" - 24" | 58 - 61 | XX-Large |
WOMENS
| Rider Height | Recommended Women's Mountain Frame Size | ||
|---|---|---|---|
| Feet & Inches | Centimetres | Frame Size (inches) | Frame Size |
| 4'10" - 5'2" | 148cm - 158cm | 13" - 14" | X-Small |
| 5'2" - 5'6" | 158cm - 168cm | 15" - 16" | Small |
| 5'6" - 5' 10" | 168cm - 178cm | 17" - 18" | Medium |
| 5'10" - 6'1" | 178cm - 185cm | 19"+ | Large |
COMMUTER ELECTRIC BIKES
MENS
| Rider Height | Suggested Commuter Bike Size | ||
|---|---|---|---|
| Feet & Inches | Centimetres | Frame Size (cm) | Frame Size |
| 4'10" - 5'0" | 148cm - 152cm | 47cm - 48cm | XX-Small |
| 5'0" - 5'3" | 152cm - 160cm | 49cm - 50cm | X-Small |
| 5'3" - 5'6" | 160cm - 168cm | 51cm - 53cm | Small |
| 5'6" - 5'9" | 168cm - 175cm | 54cm - 55cm | Medium |
| 5'9" - 6'0" | 175cm - 183cm | 56cm - 58cm | Large |
| 6'0" - 6'3" | 183cm - 191cm | 58cm - 60cm | X-Large |
| 6'3" - 6'6" | 191cm - 198cm | 61cm - 63cm | XX-Large |
WOMENS
| Rider Height | Suggested Women's Commuter Frame Size | ||
|---|---|---|---|
| Feet & Inches | Centimetres | Frame Size (cm) | Frame Size |
| 4'10" - 5'1" | 147cm - 155cm | 44cm - 46cm | XX-Small |
| 5'1" - 5'3" | 155cm - 160cm | 47cm - 49cm | X-Small |
| 5'3" - 5'5" | 160cm - 165cm | 50cm - 52cm | Small |
| 5'5" - 5'8" | 165cm - 172cm | 53cm - 55cm | Medium |
| 5'8" - 5'10" | 172cm - 180cm | 56cm - 57cm | Large |
VIEW ALL COMMUTER ELECTRIC BIKES
Suspension
Enjoy a smooth ride with the BREACH TRAVEL suspension fork.
High quality parts
"Best in class" components including Kenda Tyres and Shimano Gears.

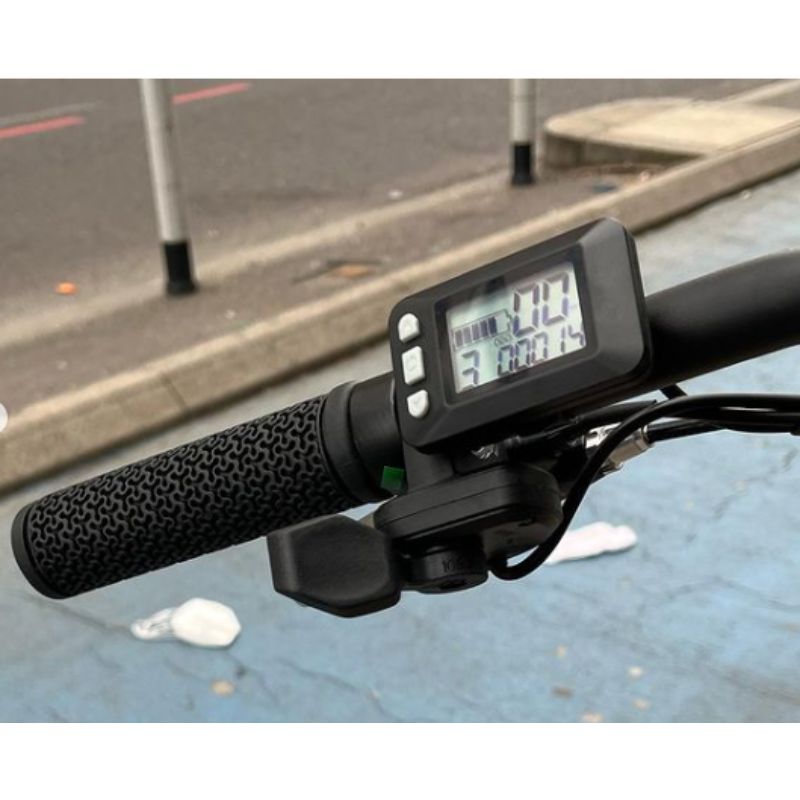

LCD Display
With a host of great features.
specifications

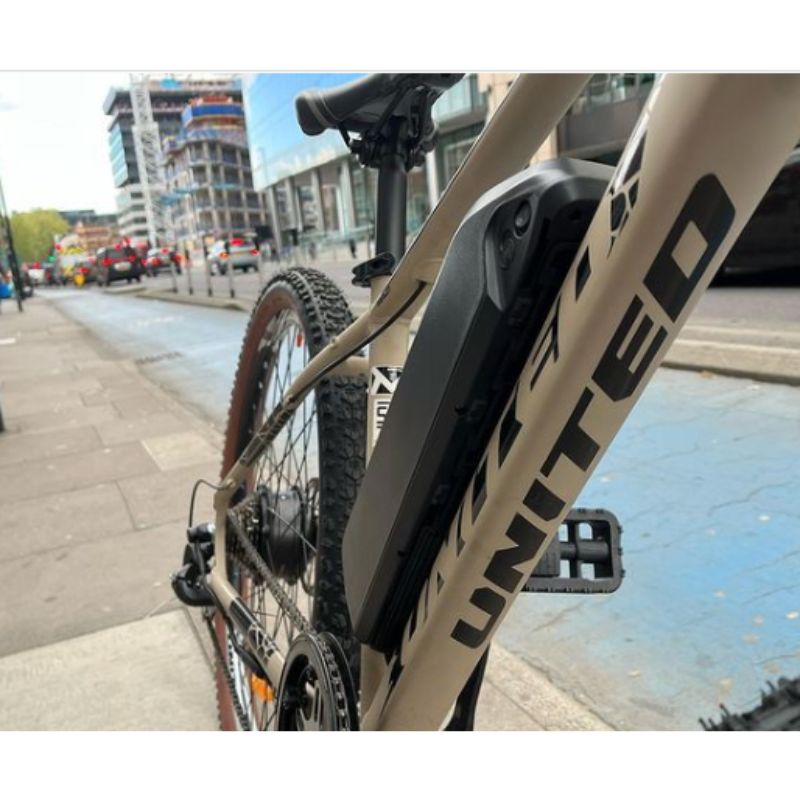

Battery and Range
8 AH (Up to 30km per charge)
** Range according to battery capacity. It is also dependent on the different riding conditions - terrain, rider weight, tyre pressure, headwind etc.
Motor
REAR HUB MOTOR 250WATT UNITED COMPONENTS
Frame
E-MOUNTAIN ALLOY FRAME, COMFORT GEOMETRY
Fork
BREACH TRAVEL 120MM MLO
Display
LCD Display
Gears
SHIMANO TOURNEY 1 X 7 SPEED
Tyres
KENDA 27,5" X 2,1MM
Drivetrain
CASSETTE
14-28T
CRANKSET
170MM
CHAINRINGS
34T
Brakes
Mechanical Disc Brakes
180mm front and 160mm rear (rotors)
Delivery and Returns
FREE DELIVERY ON ALL ORDERS
Cancelling your order:
If you would like to cancel your order, please contact us immediately at info@ecobikecompany.com or on 0333 050 3189. Please include your order number when contacting us.
If your order has not yet left the manufacturer's warehouse, we should be able to stop it shipping, and issue you a refund immediately.
Please note – when returning a product, it must be returned in ‘as new’ condition, with all components included, in their original packaging. There will be a charge for the return.
Returns - Changed your mind
If you change your mind after buying from us and want a refund, you have up to 14 days to let us know and have the goods returned to us. You will need to return the product to us before we can provide a refund. Eco Bike Co. can help arrange the return for a charge of £50 - a courier will be sent to pick it up from you & return it to the manufacturer.
Please note – the 14 days return period is to allow you to examine the goods as you would in a shop. To obtain a full refund, the goods must be returned in an “as new” condition with all components included in their original packaging. “As new” condition is defined as unridden.
Returns - Damages & Faulty
We ask that you thoroughly inspect all items at the point of delivery. We advise you not to accept delivery of any damaged items. If you discover that an item has been damaged, please send clear photos of the damaged items to info@ecobikecompany.com so that we can open an insurance claim on your behalf.
If your bike develops a fault through normal use (as outlined in the manufacturer's manual) you could be entitled to a repair or replacement as covered with the warranty. Please send through details of the fault to info@ecobikecompany.com and we will arrange the repair or replacement with the manufacturer.
Please note – any fault caused due to misuse of the bike is not covered by this policy. Please ensure you read the manufacturer's manual in detail before using your electric bike to avoid voiding your warranty.
FREE SMARTPHONE HANDLEBAR MOUNT
2 Year Warranty
Motor, Battery, Controller, Frame - 2 Years
Charger, Front Fork, Handlebar - 1 Year
LCD Screen, Switch, Crank, Throttle, Pedals, Fly Wheel, Thumb Shifter, Derailleur - 6 Months
Front Light, Brake Disc, Tyres - 3 Months
The following conditions are not covered by the warranty: Water damage of battery, motor or controller. Manmade damage or self modification. Tyre puncture by sharp objects.
Warranty is subject to proper use and reasonable care of the bike.
